Sony XM-5ES
$ 999.99
Mobile ES™ 5-channel Power Amplifier
Product highlights:
100 W x 4 (330 W x 2 bridged) and 450 W x 1 RMS output power at 4 ohms
165 W x 4 and 750 W x 1 RMS output power at 2 ohms
High-Resolution Audio compatible
Signal summing for seamless connection to factory audio and combined pre-outs
Updated connection terminal/control panel design, and supplied bass remote
Superior sound meets versatility
The XM-5ES Mobile ES™ 5-channel car amplifier will take your in-car sound to the next level. Engineered with pure audio precision, you can hear every detail of music brought to life, with an extended frequency response, driven by 100W x 4 (330W x 2 bridged) + 450W x 1 RMS output power. The new signal summing feature and combined pre-outs allows for seamless installation in various types of vehicles.
100W x 4 + 450W x 1 RMS output power
Enjoy dynamic sound with an output power of 100W x 4 (330W x 2 bridged) + 450W x 1 RMS at 4 ohms / 165W x 4 + 750W x 1 RMS at 2 ohms. The highly efficient class-D amplifier boosts your in-car music, providing a variety of speaker configurations of your choice.
The Way The Artists Truly Intended
Listen to the subtlest nuances of studio-quality sound in higher than CD quality with High-Resolution Audio. Feel as if the artist was performing right in front of you. The XM-5ES 5-channel amplifier is engineered to enhance every track — including High-Resolution Audio files.
A range of premium circuit components work together for ultimate efficiency and pitch-perfect sound reproduction, giving every road trip the soundtrack it deserves.
Powerful sound with astonishing clarity
Sony’s expertise and long years of engineering experience with digital amplifiers has made it possible to realize a compact and powerful amplifier, with uncompromising sound quality.
Optimized power blocks
The power supply block is optimally designed for low-noise, highly efficient electric power transmission, where the DC converter with a toroidal core transformer is chosen for less electro-magnetic interference. To reproduce delicate ultra-high-frequency sound, each channel block and the class-D amplification are all isolated with their own ground circuitry, minimizing any signal interference.
Select components for superior sound
The upgraded inductors with OFC wires are selected for lower internal resistance and improved sound character, while the high-capacity electrolytic capacitors contribute to precise and responsive bass.
Sturdily built structures
The sturdy aluminum frame and solid (1.2mm) bottom plate reduce vibration and wick away heat, resulting in low resonance and a tightly controlled musical performance.
Conventional model
Mobile ES amplifier

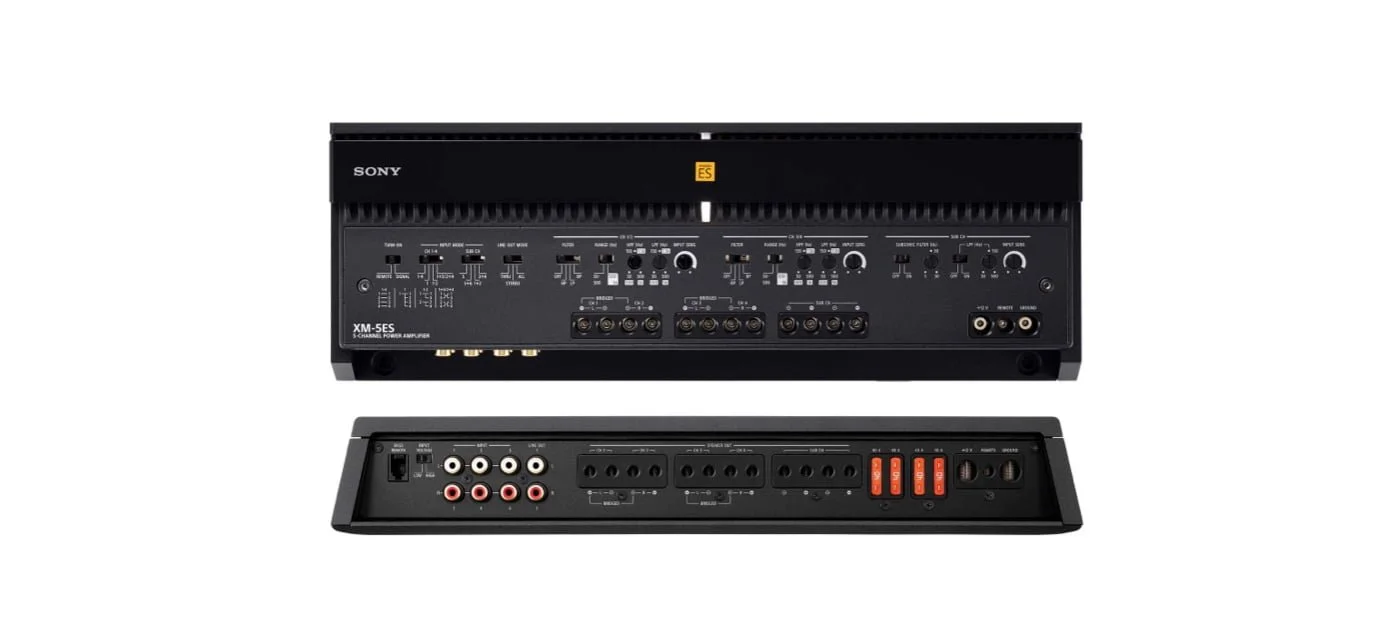

Enhanced logical control and connection placement
Controls for adjustments, and placement of connections, are logically placed for easy understanding and use. The carefully considered layout ensures both intuitive operation and installation simplicity.
High-quality speaker terminal
The speaker terminal features Hex-key screws, providing a durable method of tightening the wire connections while accepting bare wire or wire ferrules (up to AWG #8) for superior electrical performance and high-quality sound, and safe connection.
Clear labels and values
The redesigned control panel features logical placements with easy-to-understand correlation, and updated graphics.
Input / Output Adjustments
Easily integrate the XM-5ES into your system with clear input and output settings.

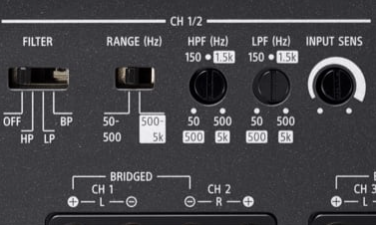

Filter / Range Adjustments
Filter parameters are grouped for seamless sound tuning.
Easy Operation
The clear, high contrast labels makes adjustment quick and easy, so you can get your system sounding great faster.
Signal summing for seamless connection to factory audio
The new signal summing feature combines filtered audio signals from modern factory car audio systems, such as those for the separate tweeter, woofer and subwoofer, accurately amplifying the full stereo frequency range easily. And you can even send the consolidated line-level signal onto other mono or stereo amps in the chain, allowing for flexible installation in various types of vehicles and audio system setups.
Case 1
Connection to factory audio with no frequency filters.
Factory Front: 20 Hz – 20 kHz. Factory Rear: 20 Hz – 20 kHz.
Case 2
Connection to factory audio with filtered output signals for stereo high, mid, and monaural subwoofer.
Factory Front: 500 Hz – 20 kHz. Factory Rear: 50 Hz – 2.5 kHz. Factory Subwoofer: 30 Hz – 500 Hz.
Case 3
Connection to factory audio with filtered output signals for stereo high, low, and subwoofers.
Factory Tweeter: 5 kHz – 20 kHz. Factory Mid-bass/Woofer: 50 Hz – 5 kHz. Factory Subwoofer: 30 Hz – 500 Hz.
