Audison APK 165
prima series 2 way System

Details

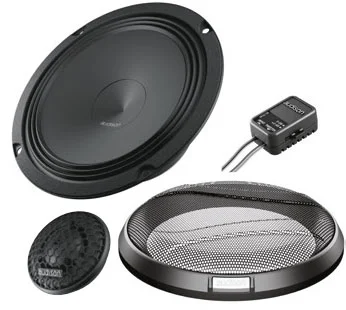

Two way system features AP 1 tweeter and AP 6.5 Woofer. APCX TW crossover features a two-position level selector providing the ability to adapt its response to its two main applications: +2dB if installed behind the OEM grille, 0dB for an A-pillar installation without additional grilles between the tweeter and the listener.

To ease the installation in OEM placements the woofers are equipped with high current fast-on terminals with double contact on positive and negative poles for high flexibility and quick connection.

Technical Data

Size:
165 mm (6.5″) Woofer
26 mm (1″) Tweeter
46,5 x 37,5 x 20,1 mm (1.83″ x 1.47 x 0.8) Crossover

Power Handling:
100 W Continuous Power
300 W Peak Power

Impedance:
4 Ω

Frequency Response:
60 – 20k Hz

Sensitivity:
93,5 dB/Spl
