Audison APK 130
prima series 2 way System
Details

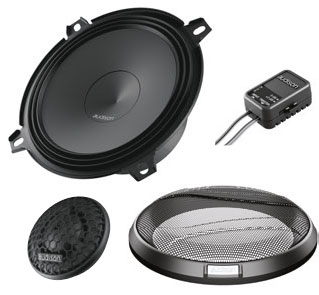

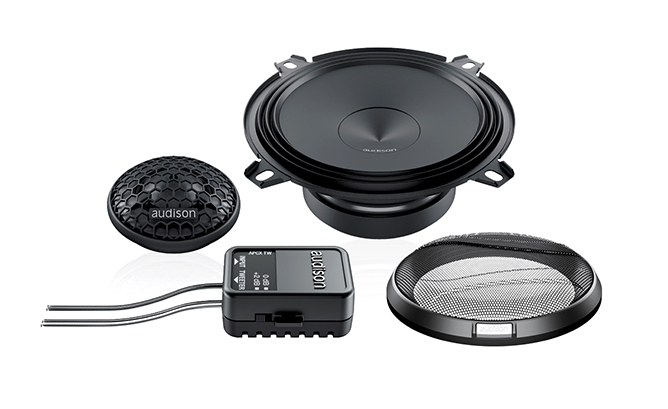

Two way system features AP 1 tweeter and AP 5 Woofer. APCX TW crossover features a two-position level selector providing the ability to adapt its response to its two main applications: +2dB if installed behind the OEM grille, 0dB for an A-pillar installation without additional grilles between the tweeter and the listener.
To ease the installation in OEM placements the woofers are equipped with high current fast-on terminals with double contact on positive and negative poles for high flexibility and quick connection.
Technical Data
Size:
130 mm (5″) Woofer
26 mm (1″) Tweeter
46,5 x 37,5 x 20,1 mm (1.83″ x 1.47 x 0.8) Crossover
Power Handling:
75 W Continuous Power
225 W Peak Power
Impedance:
4 Ω
Frequency Response:
70 – 20k Hz
Sensitivity:
93,5 dB/Spl
