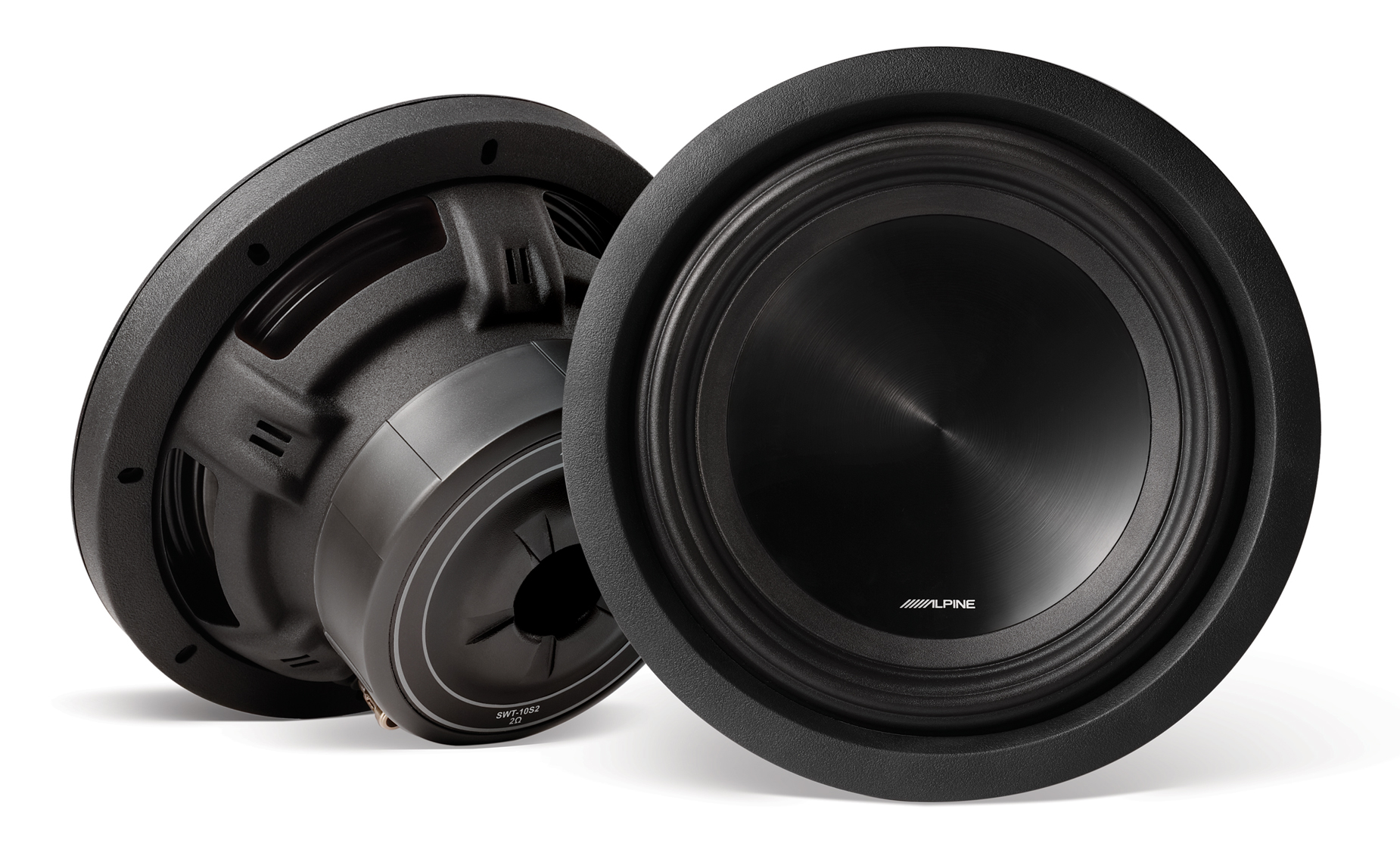

SWT-10S2/S4
10" Subwoofer (2 OHM/4 OHM)
$219.95
Engineered To Fit And Sound Great In Your Truck
This SWT Truck Subwoofer combines the intense low-bass performance and ground-shaking output of the traditional Type-R subwoofers in a thin package optimized for extremely small enclosures.
(Sold as single woofer)
Max RMS Power Capacity: 350W
Peak Power Capacity: 1000W
Overview
Shallow Mounting Depth
The SWT 10” Truck Subwoofer has been engineered to offer more installation flexibility without sacrificing big output to build the ideal sound system for your truck. At 4-1/8” deep, these subs provide deep bass performance where it normally couldn’t fit in a truck. And the vented pole optimized for 4-1/8” deep box is the ideal enclosure size meaning great bass performance can fit just about anywhere in your truck.
More Excursion = More Output
The FEA-Optimized Motor Structure together with our revolutionary High-Amplitude Multi Roll (HAMR) Suspension Design gives the new SWT Truck Subwoofers the highest X-max and SPL output in its category.
The new SWT Truck Subwoofers deliver the best-in-class bass output, ultra-low distortion, and unparalleled sound quality. With a real world, measured 11mm of X-max, the SWT subwoofers perform like traditional models, yet fit in smaller spaces.
4 Unique Alpine Technologies
Radial Vented VC Heat Sink & Airflow Management System
Actively manages voice coil temperatures by forcing air directly across the heat sink system.
FEA Optimized Dual-Sided Machined CRC Motor Structure
Creates a symmetrical magnetic field with evenly distributed flux density to greatly reduce distortion, while further improving power handling and output.
FEA Optimized Injection Molded TPE Spider with Pass-Through Gap Design
Provides the mechanical clearance needed for over 50mm of peak-to-peak excursion, unleashing massive output potential from a small package
FEA Optimized HAMR Surround
The High-Amplitude Multi Roll Surround Design allows for extreme excursions without sacrificing valuable cone area. FEA Optimized for linearity and made with injection-molded Santoprene ®, the HAMR surround is a key part of the suspension system that provides accurate, distortion-free control at extreme excursions.
Features and Specification
SPECIFICATIONS
Power Handling
CEA-2031 Power Rating: 350 Watts
Power Range: 100W - 350W
RMS Power Handling: 350 Watts
Peak Power Handling: 1000 Watts
Dimensions
Mounting Depth: 105.5 mm (4-3/16'')
Mounting Diameter: 227 mm (8-15/16'')
Displacement: -0.02 cu. ft.
Added Volume: +0.03 cu. ft.
General
Frequency Response: 30Hz - 200Hz
FEATURES
Diaphram
Material: Poly-Mica Dust Cap & Pulp-Kevlar
Design: 2-Piece Shallow Cone Structure
Surround
Material: Polyurethane Foam Surround
Design: H.A.M.R. Surround Technology
Spider
Material: Conex® Spider with Reinforced Layer Tinsel Leads
Design: Progressive
Voice Coil
Material: Spiral Cut Aluminum Former
Design: 65mm Voice Coil with High-Temp 4-Layer SVC Winding
Motor Structure
Pole Geometry: Compound Radius Curve
Configuration: Dual Flare Pole Vent with Airflow Back Plate
Frame
Material: High Strength Steel
Design: Perimeter Venting with Airflow Management System
Terminals
Layout: Push Terminals
Design: 8AWG
Gasket
Design: Concealed Mount Gasket (Integrated Grille System Ready, US Pat #7,760,900)
